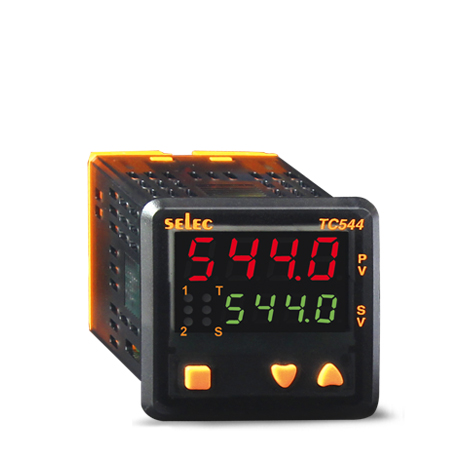

Temperature Controller, Size : 48 x 48mm [TC544B]

Display Type 7 Segment LED Dual Display
Display Configuration 4 + 4 Digits
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2(20min of warm up time) For RTD inputs: 0.1% of F.S ±1°
Resolution 0.1/1° for TC/RTD (fixed 1° for R and S TC)
Control Output RELAY or SSR.
Auxiliary Output RELAY
Feature Heat cool PID , Dwell timer
Control mode PID or ON/OFF
Supply Voltage 85 to 270V AC/DC
Size 48mm x 48mm
Mounting Type Panel mount
Certification CE

Temperature Controller, Size : 48 x 48mm [TC533BX]

Display Type 7 Segment LED Dual Display
Display Configuration 3 + 3 Digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100)
Control Output RELAY or SSR.
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °; For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time); For RTD inputs: 0.1% of F.S ±1
Control mode PID or ON/OFF
Resolution 0.1/1° for TC/RTD (fixed 1° for R and S TC)
Supply Voltage 85 to 270V AC/DC
Size 48mm x 48mm
Mounting Type Panel mount
Certification CE in process

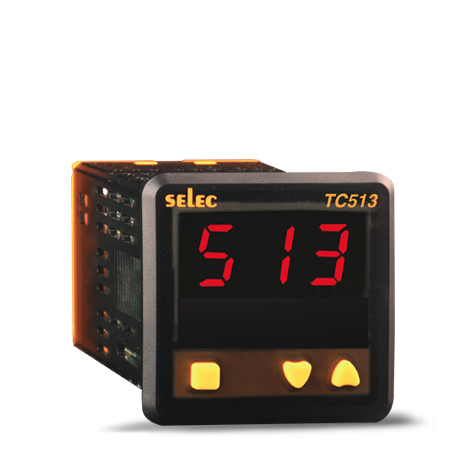

Temperature Controller, Size : 48 x 48mm [TC513BX]

Display Type 7 Segment LED Single Display
Display Configuration 3 Digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100)
Control Output RELAY or SSR
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2° (20min of warm up time) For RTD inputs: 0.1% of F.S ±1°
Supply Voltage 85 to 270V AC/DC
Size 48mm x 48mm
Mounting Type Panel mount
Certification CE in process

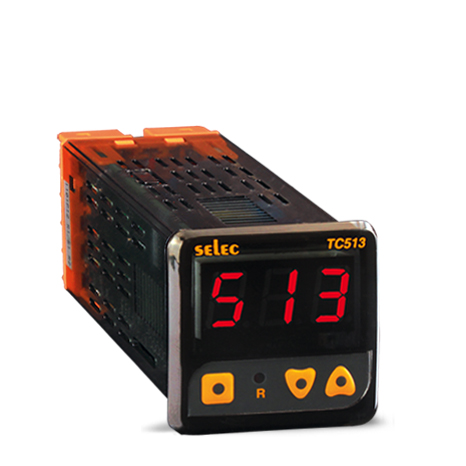

Temperature Controller, Size : 48 x 48mm [TC513AX]

Display Type 7 Segment LED, Single Display
Display Configuration 3 Digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100)
Control Output RELAY or SSR
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °: For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Supply Voltage 85 to 270V AC
Size 48mm x 48mm
Mounting Type Panel mount
Certification CE

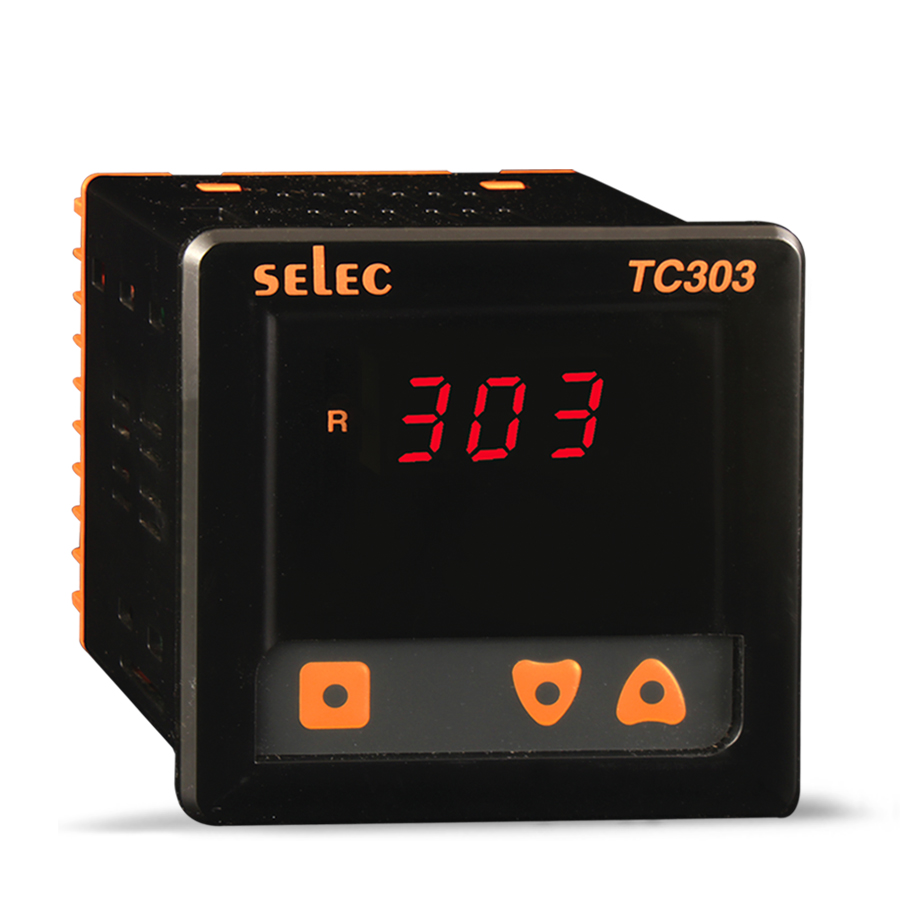

Temperature Controller, Size : 96 x 96mm [TC303AX]

Display Type 7 Segment LED Single Display
Display Configuration 3 Digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100)
Control Output RELAY or SSR
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1: For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Supply Voltage 85 to 270V AC
Size 96mm x 96mm
Mounting Type Panel mount
Certification CE
