Residual Current Circuit-breaker (RCCB)



RCBO - DS200M series

  • Compiles to standard to IEC/EN 61009
  • DS201 available in 4.5kA,6kA & 10kA breaking capacity
  • Available in AC, A and APR types to meet all protection needs
  • B and C characteristics with rated current up to 40 A available on all the versions

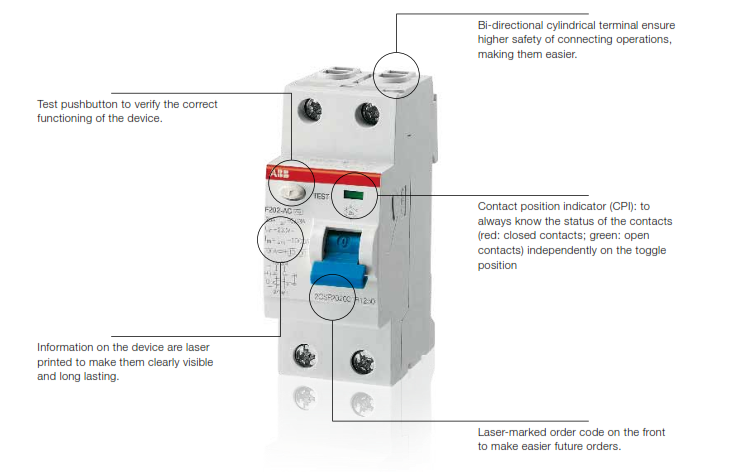

  • Contact Position Indicator (CPI) to indicate the exact information of the circuit-breaker status
  • Equipped with an RFid tag accor. to standard ISO/IEC FCD 15693-3 to authenticate the product.
  • Bidirectional cylinder-lift terminals for easier the parallel feed
Download Brochure Send Enquiry

RCCB Blocks With-

  • Compiles to standards IEC 60947-2 & EN 60898-1
  • Compact size : One size up to 125A
  • Compact performance :Selective and back-up characteristics
  • Does not let go: The interchangeable terminal adapter. Cage terminals or ring lugs
  • On the safe side: Operating status display.
  • Simple and flexible: Accessories fitted by the customer
Download Brochure Send Enquiry
