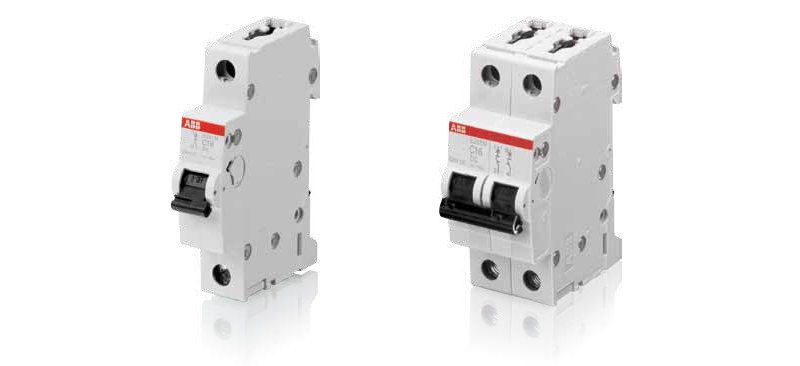

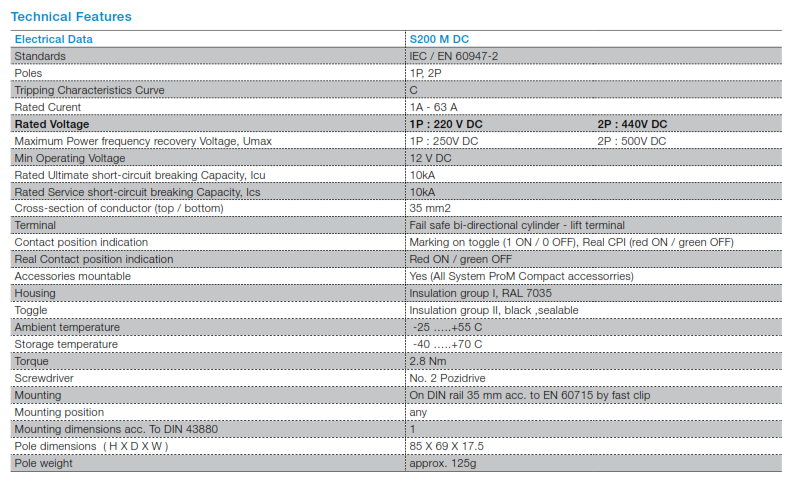

S200 M DC MCB in System pro M compact range impresses with its performance range, approvals and high inbuilt short circuit breaking capacity in DC applications. S200 M DC MCBs can be used in 1-pole version at 220V DC and in 2-pole version up to 440V DC. During the installation process it is necessary to take into account, the polarity marked on the device.

• Breaking capacity - 6kA
• Tripping characteristics - C curve
• Suitable for -25ºC to +55ºC ambient temperatures
• Standards : Conforms to IEC60898, IEC60947-2

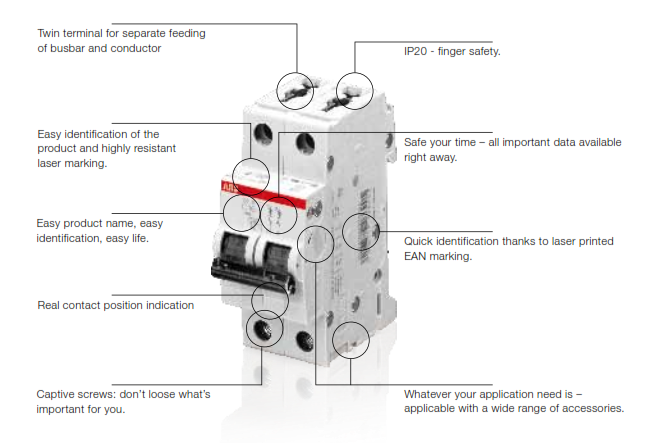

Features :-

• Compiles to standards IEC 60947-2 & EN 60898-1
• Compact size : One size up to 125A
• Compact performance :Selective and back-up characteristics
• Does not let go: The interchangeable terminal adapter. Cage terminals or ring lugs
• On the safe side: Operating status display.
• Simple and flexible: Accessories fitted by the customer

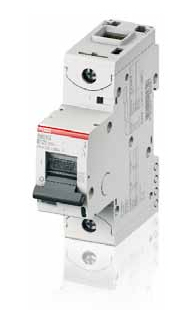

The S800 range :-

• S800S (50kA) upto 125A
• S800N (36kA) upto 125A
• S800C (25kA) upto 125A
• S800B (16kA) upto 125A
• S800PV-S (upto 1200V DC & upto 125A)
• S800PV-M (upto 1200V DC & upto 125A)
