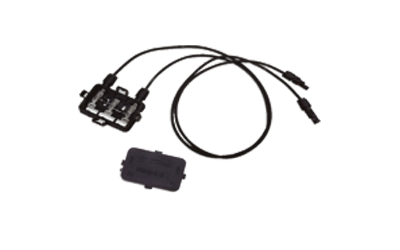

'elmex’ introduces junction box for electrical connection from PV Crystalline module as a solution for easy and reliable interconnection from PV module to DC/AC converters. ‘elmex’ Junction Box has simple and cost effective assembly designed with snap fit locking arrangement with IP 65 protection sealing requirement for PV industry. The junction box is provided with two cables each of 1 meter length with ‘elmex’ male and female EMPV4 connector for simple on-site process.
| Description | Elmex Specification |
| Rated Voltage | 1000 V DC |
| Rated Current | 10A |
| Degree of Protection | IP 65 |
| Safety Class | III |
| Type Of Terminal | Soldering + Fastering |
| Number Of Diodes | 2 |
| Locking System | Snap In |
